Non Discoloring Flexible EVA Sole Sheet With Printed LOGO , ISO Certified

Ask Lasest Price
Brand Name :	Skypro
Model Number :	SP1007
Certification :	SGS/ROHS
Price :	negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	10000 yads/day
Delivery Time :	15days

Add to Cart

Product Details
Company Profile

Non Discoloring Flexible EVA Sole Sheet With Printed LOGO , ISO Certified

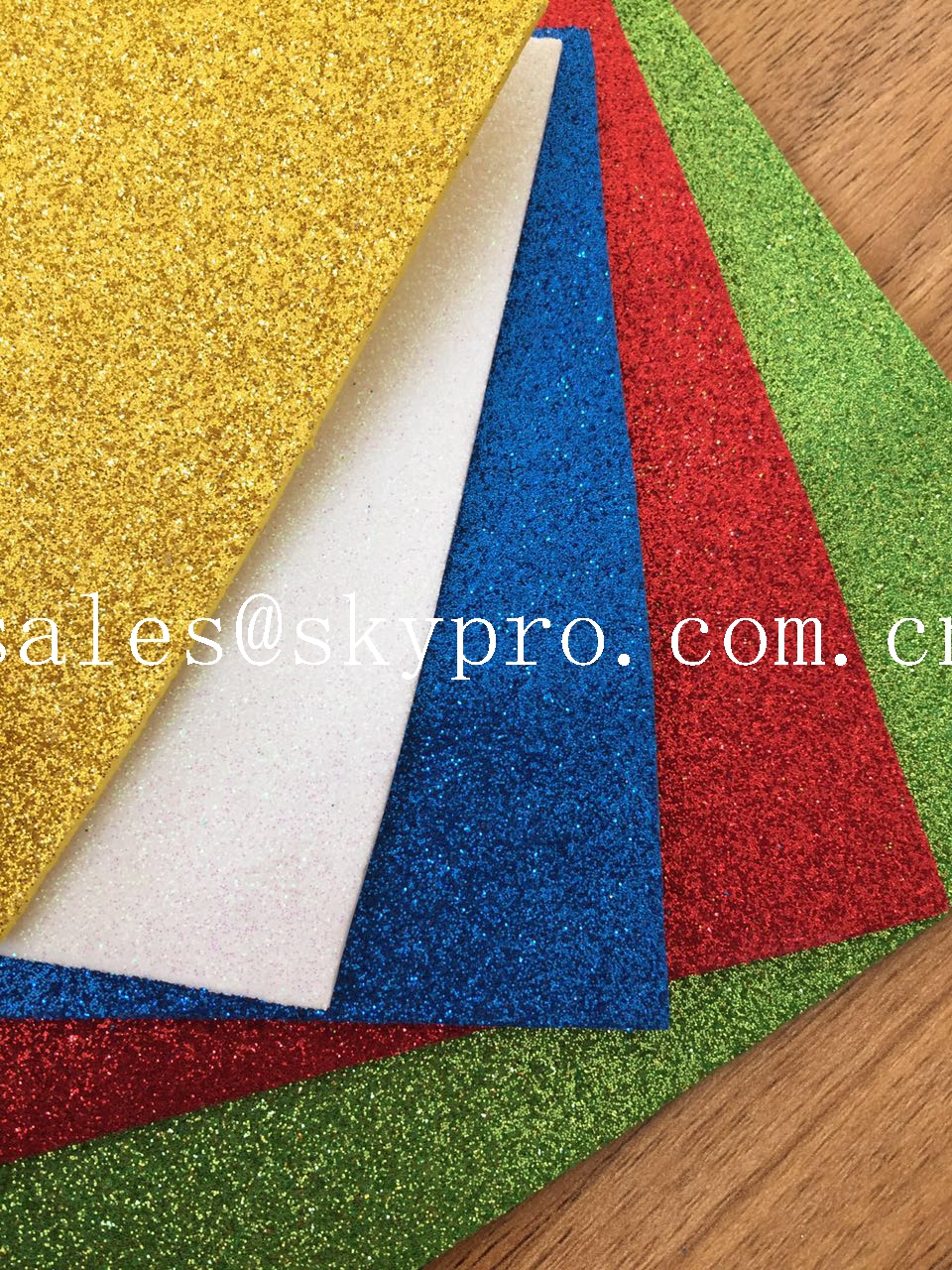

Non Discoloring Gold Ethylene Vinyl Acetate Flexible EVA Foam Sheet 2mm Thick Self-adhesive Glitter EVA Materials

Material	EPDM foam, ECO friendly, can pass EN71, ROHS, REACH, etc
Color	Any color on pantone book is available
Hardness	25°C, 38, 45, 60, 70, 75, 80°C
Density	20-350KG/M3
Thickness	0.5-20mm
Size	Customized size or suggested size by our engineer
Design	We can make any design as per customer's request
LOGO	Logo can be printed or embossed
*Sample*	*Sample time: 3-7 days*
*Sample*	*Sample charges: Free*
Mould making	About 3-15 days
Place of origin	Nanjing, China
Packing	1.Our standard packing or at your request
	2.Enviroment friendly packing material, economic packing way will save freight for you
	3.High quality carton packing suitable for long-distance transportation
*Production Process*	*1.Mould Making*
	*2.Sample Making*
	*3.Sample confirming*
	*4.Mass Production (initial production inspection)***
	*5.Trimming*
	*6.Final Quality inspection*
	*7.Packing*
	*8.Shipment*
Advantage	1.ISO 9001.2008 certified
	2.Advanced equipment and excellent RD Team
	3.Highly skilled manufacturing process
	4.A board variety of ODM and OEM product range
	5.Strict quality control system
	6.Prompt delivery

1.Please send enquiry and tell us the size,thickness,hardness,quantity, then we can quote asap.
2.Focus on EVA 8 years,We can produce not only color/glitter/adhesive/stripe/mix/texture/emboss EVA foam sheets&rolls, but also odourless,high-elastic, wear-resisting, anti-flaming, anti-static EVA foam sheets&rolls.

3.We are specialized in formamide free eva sheets,the formamide content can below 5 ppm , export to Europe and North America annual .Our glitter eva sheets adopt special technology to avoid the powder droping

4.OEM service. According to customer needs, we can deep processing of Eva into all kinds of toys, crafts, gifts, etc.

Packing and transportation:

Packing way	Packed in roll or flat sheet,50-100kg/roll or according to specific requests from clients
Packing material	Inner PE film+ outer Woven plastic bags as standard, palletized for extra reinforcement if necessary
Shipping marks	Neutral packing with printed marks.
Delivery time	15 days since receipt of PO and down payment
Freight	Sea(FCL & LCL) or air freight
Special size	We provide cutting services for special sizes
Lamination	We provides extra lamination with PSA, textiles or other materials.

FAQ(Frequently Asked Questions)

1. What is the capability of your company ?
Skypro is a professional manufacturer of rubber sheet for more than two decades.
Top 10 biggest rubber factory in China.

2.What is production capability each year?
We produce more than 18000 tons of rubber sheet products each year.

3.How can I get some samples?

We are pleased to offer you free samples. New clients are expected to pay for the delivery cost, this charge will be deducted from the payment for formal order.

About Rubber

rubber variety (ASTM )		IR	SBR	BR	CR	NBR
chemical structure		Isoprene Rubber,Cis 1,4- Polyisoprene “Synthetic Natural Rubber”	Styrene Butadiene Rubber	Polybutadiene Rubber	Poly-2-chlorobutadiene -1,3 chloroprene Rubber, Neoprene	Butadiene Acrylnitrile Rubber,Nitrile Rubber
main characteristics		high flexibility, good comprehensive physical mechanic performance	better wear-resistant and anti-aging function than NR, lower prices	same wear-resistant with NR and better flexible and lower temperature resistant than NR	good climate resistant, ozone proof, hot resistance and chemical resistant	good oil-resistant, wear-resistant and anti-aging
quality of NR	proportion	0.93	0.94	0.93	1.23	0.96~1.02
quality of NR	meni adhesive meni adhesive ML ₁₊₄ 100 ℃	45 ~150	30~ 7 0	35~55	45~120	30~100
rubber physical performance	hardness range ( SHORE A )	2 0~100	4 0~100	30~100	45~120	30~130
	anti-tensity (MPa)	7~27	7~24	7~20	7~27	7~27
	elongation rate (%)	100~ 700	100~ 700	100~ 700	100~ 600	100~700
	re-elasticity	excellent +	good	excellent +	excellent	good
	tearing force	excellent	middle ~ good	good	good	good
	wear-resistant	excellent	excellent	excellent	excellent	excellent
	compress & distortion	good	good	middle	good	good
	temperature range(℃)	-75~90	-60~100	-100~100	-50~120	-50~120
	climate resistant	middle	middle	middle	excellent	bad
	ozone proof	bad	middle	bad	good ~ excellent	middle
	electric performance	excellent	middle	good	good	bad ~ middle
	gas penetrating resistant	middle	middle	middle	good	excellent
oil-resistant and acid& alkali resistant	oil-resistant	bad	bad	bad	good	excellent
	fire-resistant	bad	bad	bad	middle	good
	alcohol	excellent	excellent	excellent	excellent	excellent
	MEK	good	good	good	good	middle
	water	excellent	good ~ excellent	bad	good	excellent
	high concentration inorganic acid	middle	bad	bad	middle	middle
	low concentration inorganic acid	good	good	good	excellent	good
	high concentration alkali	good	good	good	excellent	good
	low concentration alkali	good	good	good	excellent	good
application		tyre, rubber shoes, rubber pipe, adhesive tape, air spring	tyre, rubber shoes, rubberized fabrics, sports products, mattress, accumulator shell, adhesive tape	car & air plane tyre, rubber shoes, shock absorber rubber, adhesive tape, rubber pipe	wire sleeve, conveying line shock absorber rubber, window & door wedge, rubber adhesives, rubberized fabrics	oil seal, washer, oil-resistant rubber pipe, printing rubber roller, textile leather roller

rubber variety (ASTM )		EPDM	IIR	CSM	SIR	FKM
chemical structure		Ethylene Propylene Terpolymer Rubber	Isobutene-Isoprene (butyl) Rubber	Chlorosulfonated Polyethyelene	Silicone Rubber	Vinylidene Fluoride Hexaflyoropropylene Rubber,Viton
main characteristics		good anti-aging, ozone proof, polar liquid resistant, good electric performance, lightest rubber	good climate resistant, ozone proof, gas penetrating resistant, polar solvent resistant	better wear-resistant and anti-aging function than NR, lower prices.	good cold & hot resistant	best hot resistant and chemical resistant
quality of NR	proportion	0.85	0.91~0.93	1.10	0.98	1.4~1.96
quality of NR	meni adhesive ML₁₊₄ 100 ℃	40~100	45~80	45~60	liquid state	35~160
rubber physical performance	hardness range ( SHORE A )	30~100	20~90	50~95	20~95	60~90
	anti-tensity (MPa)	7~20	7~20	7~20	3~10	7~16
	elongation rate (%)	100~300	100~700	100~500	50~800	100~350
	re-elasticity	good	middle	good	good	middle
	tearing force	bad	excellent	good	middle	middle
	wear-resistant	good	good	good	middle	good
	compress & distortion	middle	middle	good	excellent	excellent
	temperature range(℃)	-60~150	-60~150	-60~150	-120~280	-50~300
	climate resistant	excellent	excellent	excellent	excellent	excellent
	ozone proof	excellent	excellent	excellent +	excellent	excellent +
	electric performance	excellent	excellent	good	excellent	good ~ excellent
	gas penetrating resistant	middle	excellent	less good	bad	excellent
oil-resistant and acid& alkali resistant	oil-resistant	bad	middle	good	middle	excellent
	fire-resistant	bad	bad	middle	bad	excellent
	alcohol	excellent	excellent	excellent	excellent	excellent
	MEK	good	excellent	less good	excellent	middle
	water	excellent	excellent	good ~ excellent	excellent	good ~ ecellent
	high concentration inorganic acid	good	excellent	excellent	good	excellent
	low concentration inorganic acid	excellent	excellent	excellent	excellent	excellent
	high concentration alkali	excellent	excellent	excellent	excellent	excellent
	low concentration alkali	excellent	excellent	excellent	excellent	excellent
application		wire sleeve, auto weather strip, window & door wedge, steam rubber pipe, conveying line	interior tyre, sulfuration capsule, roof materials, wire sleeve, window & door wedge, steam rubber pipe, hot resistant conveying line	climate resistant, anti-corrosion coating, tank lining, outdoor rubberized fabrics, anti-corrosion axe seal, rubber roller	axe seal, washer, industrial rubber roller, shock absorber product, insulation products, medical products	axe seal used in rocket, missile, septum, tank lining, front pipe and pump fittings used in chemical factory

Tolerance Table

specification tolerance range:

thickness		width
metric size	tolerance	metric size	tolerance
	±0.1	500~2000	±20
1.0	±0.2
1.5	±0.3
2.0
2.5
3.0	±0.4
4.0	±0.5
5.0	±0.5
6.0	±0.6
8.0	±0.8
10	±1.0
12	±1.2
14	±1.4
16	±1.5
18
20
22
25
30
40
50
